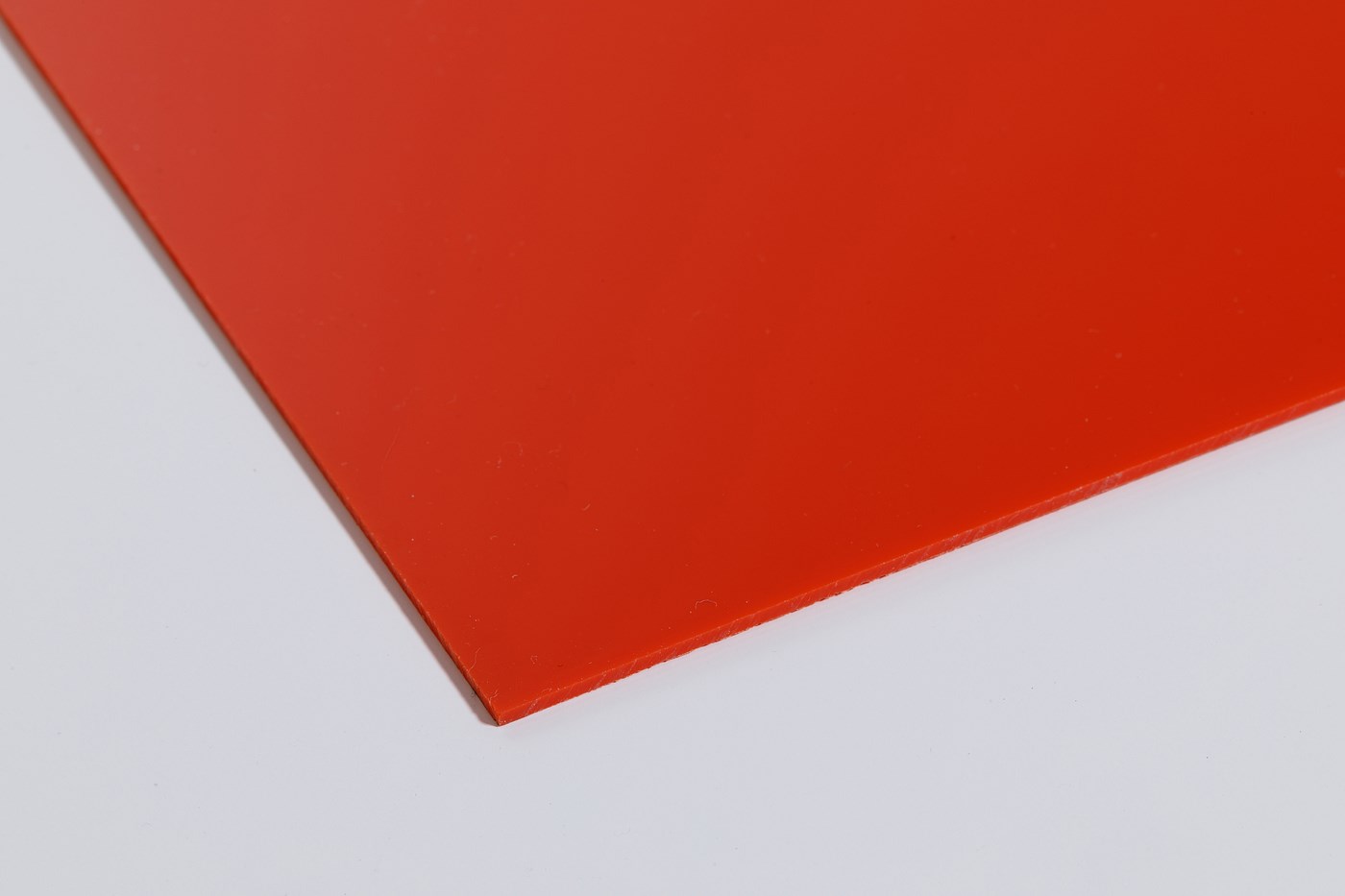

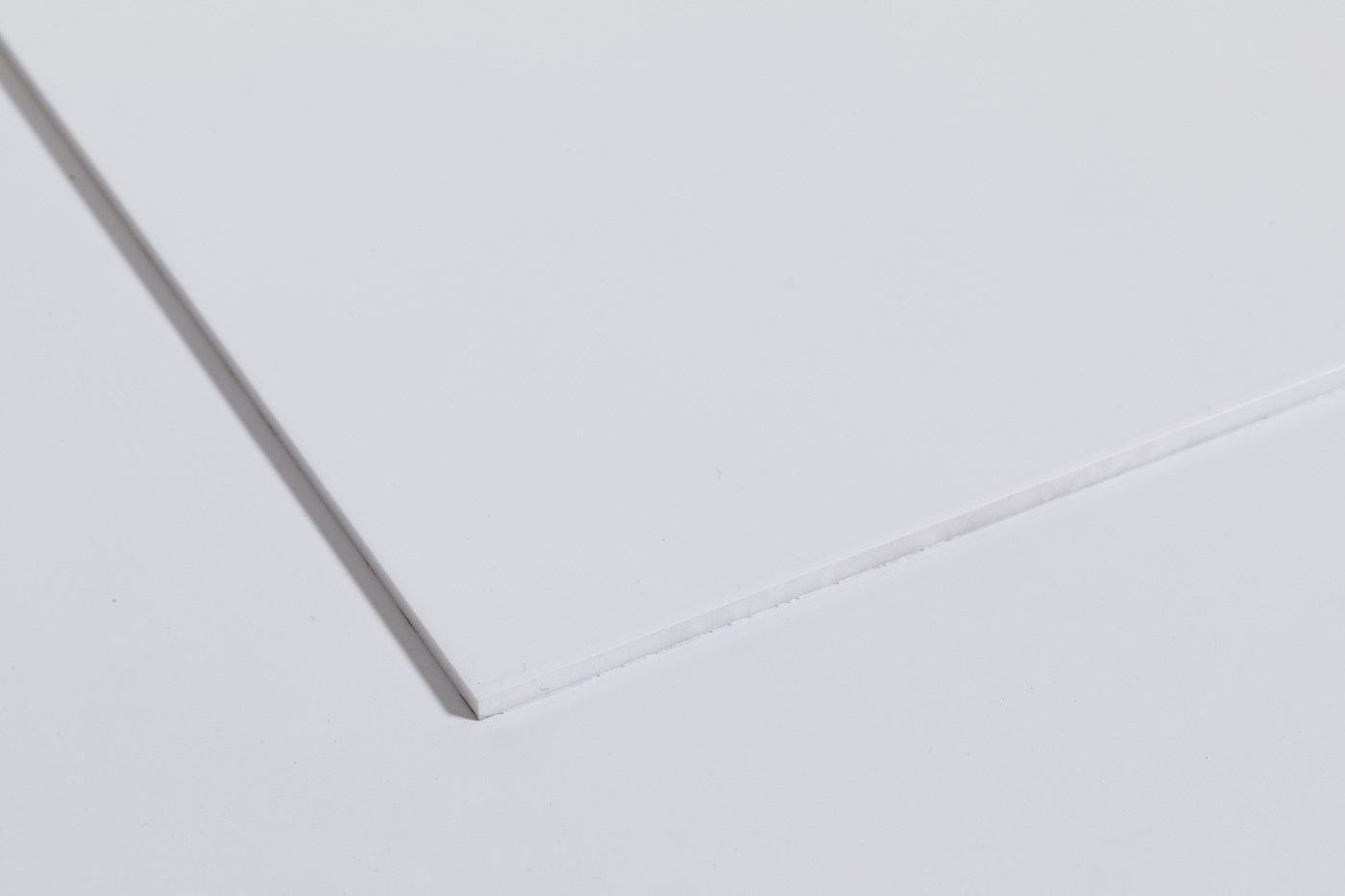

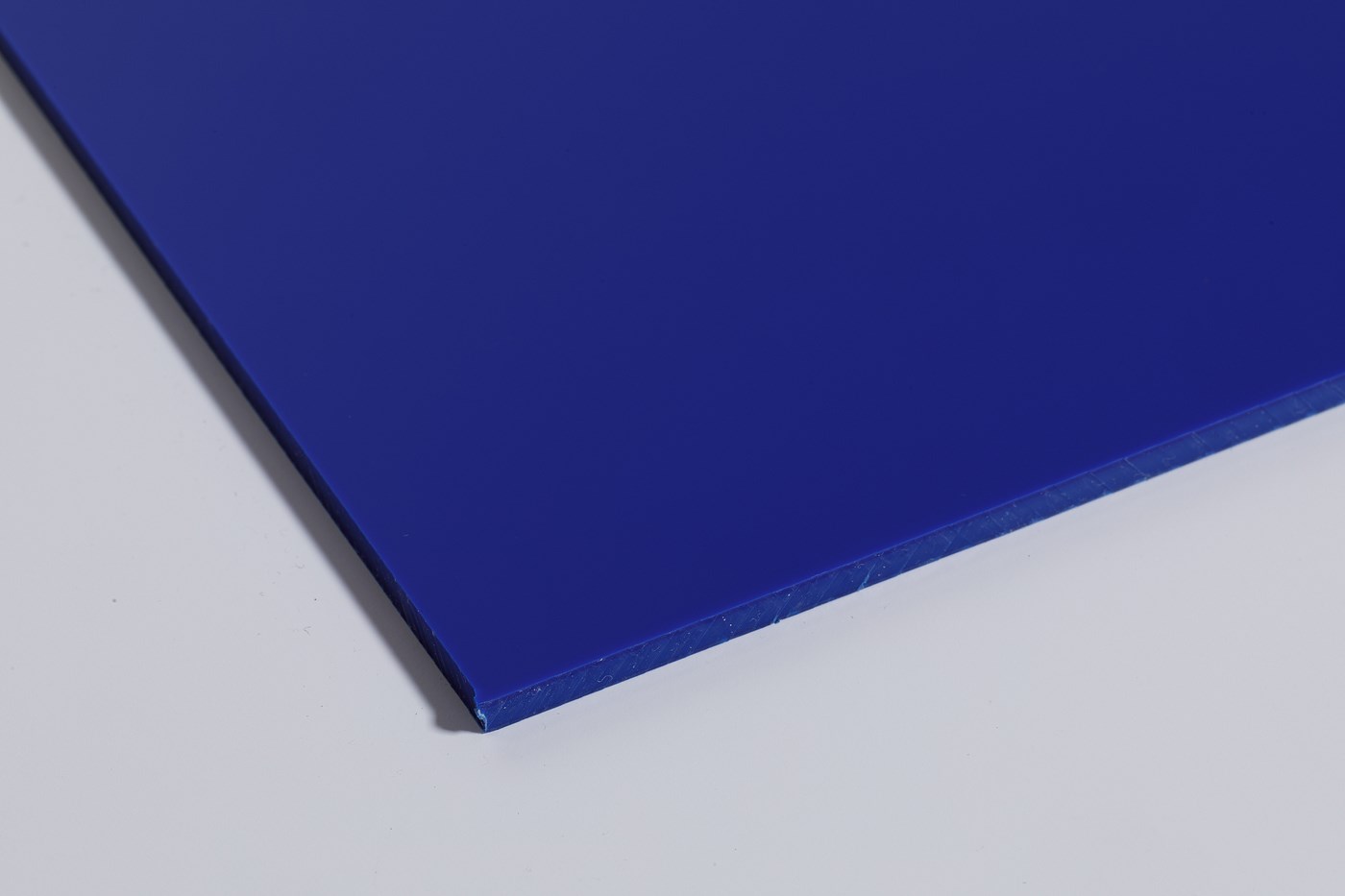

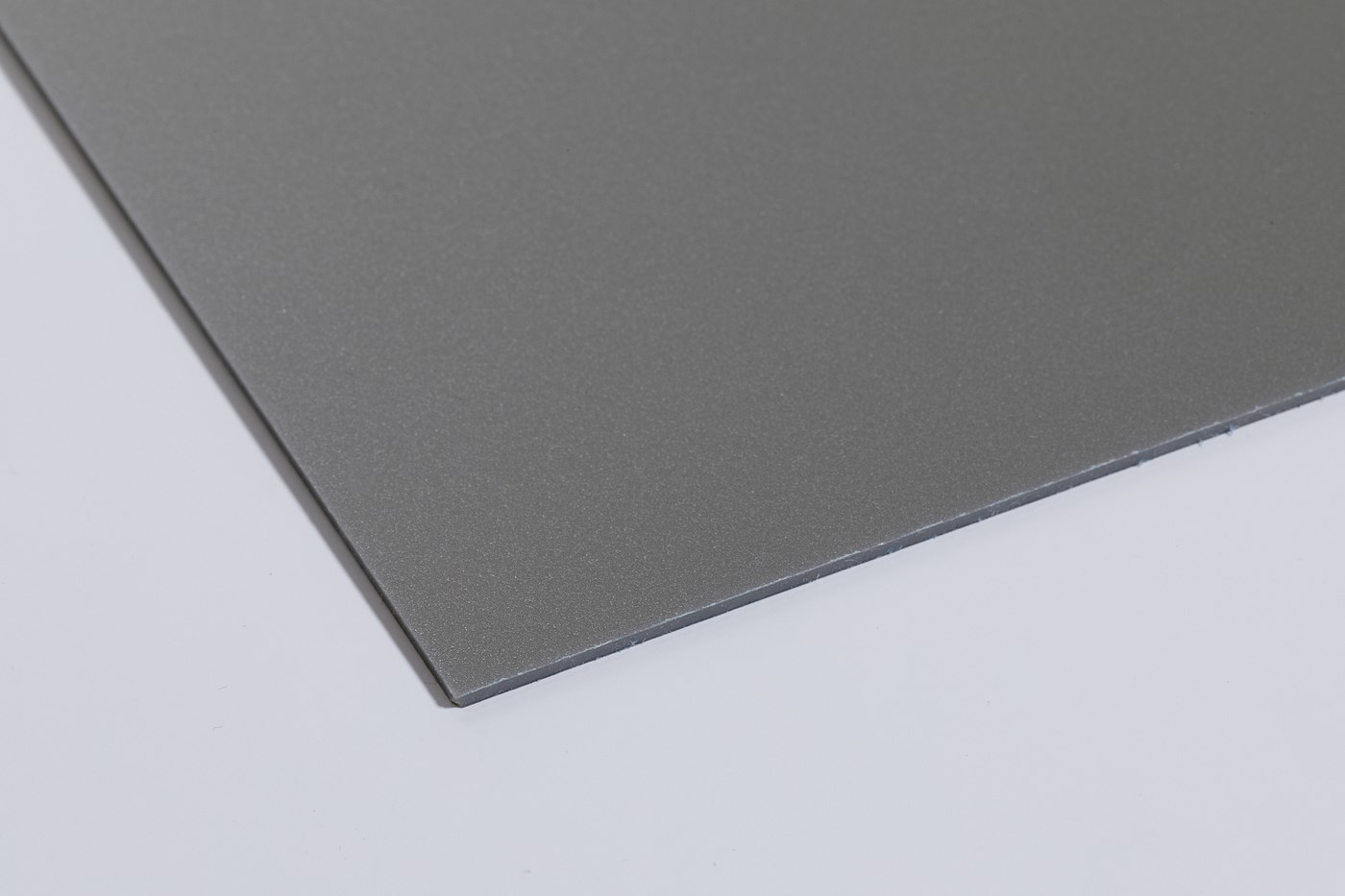

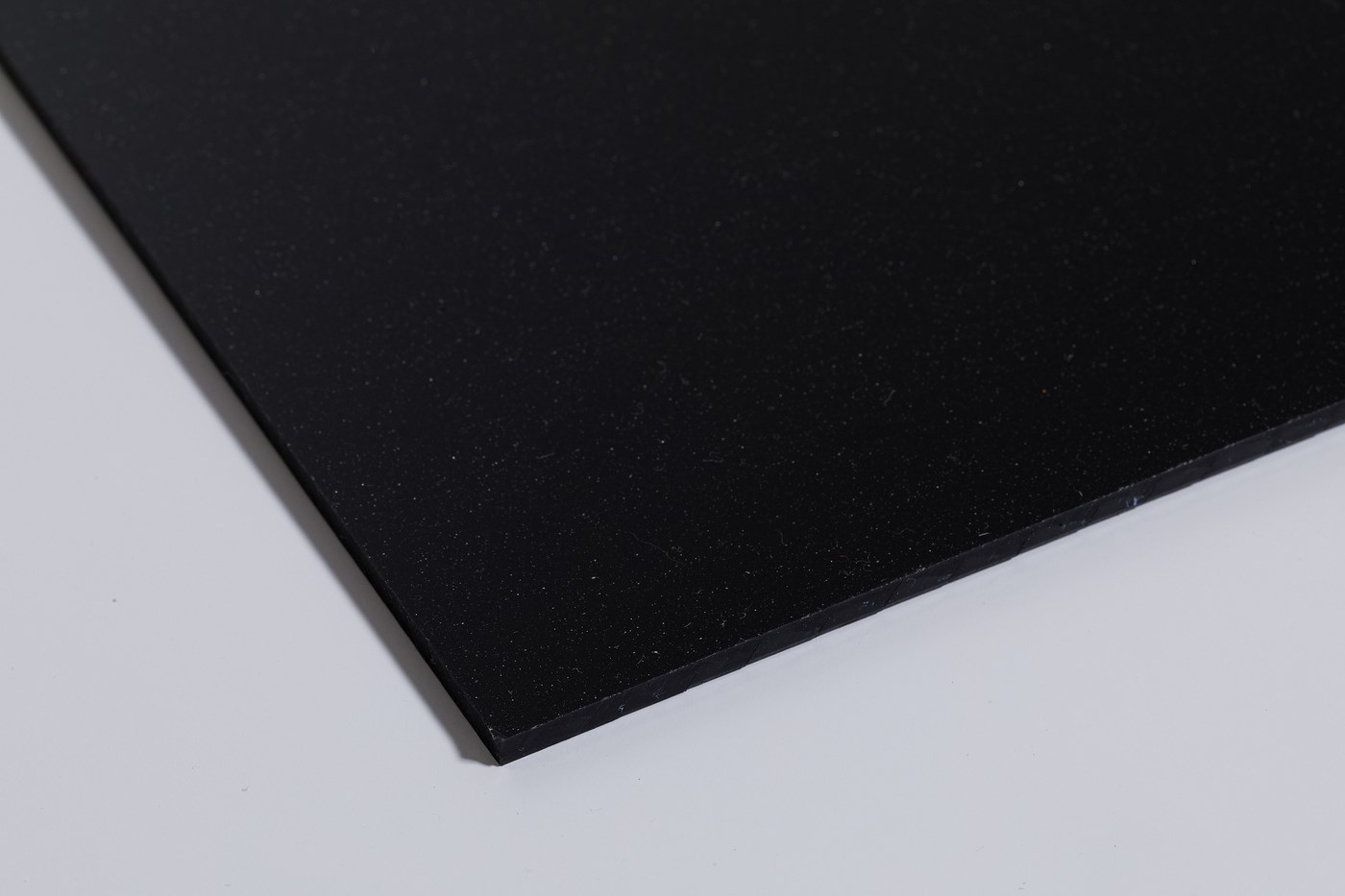

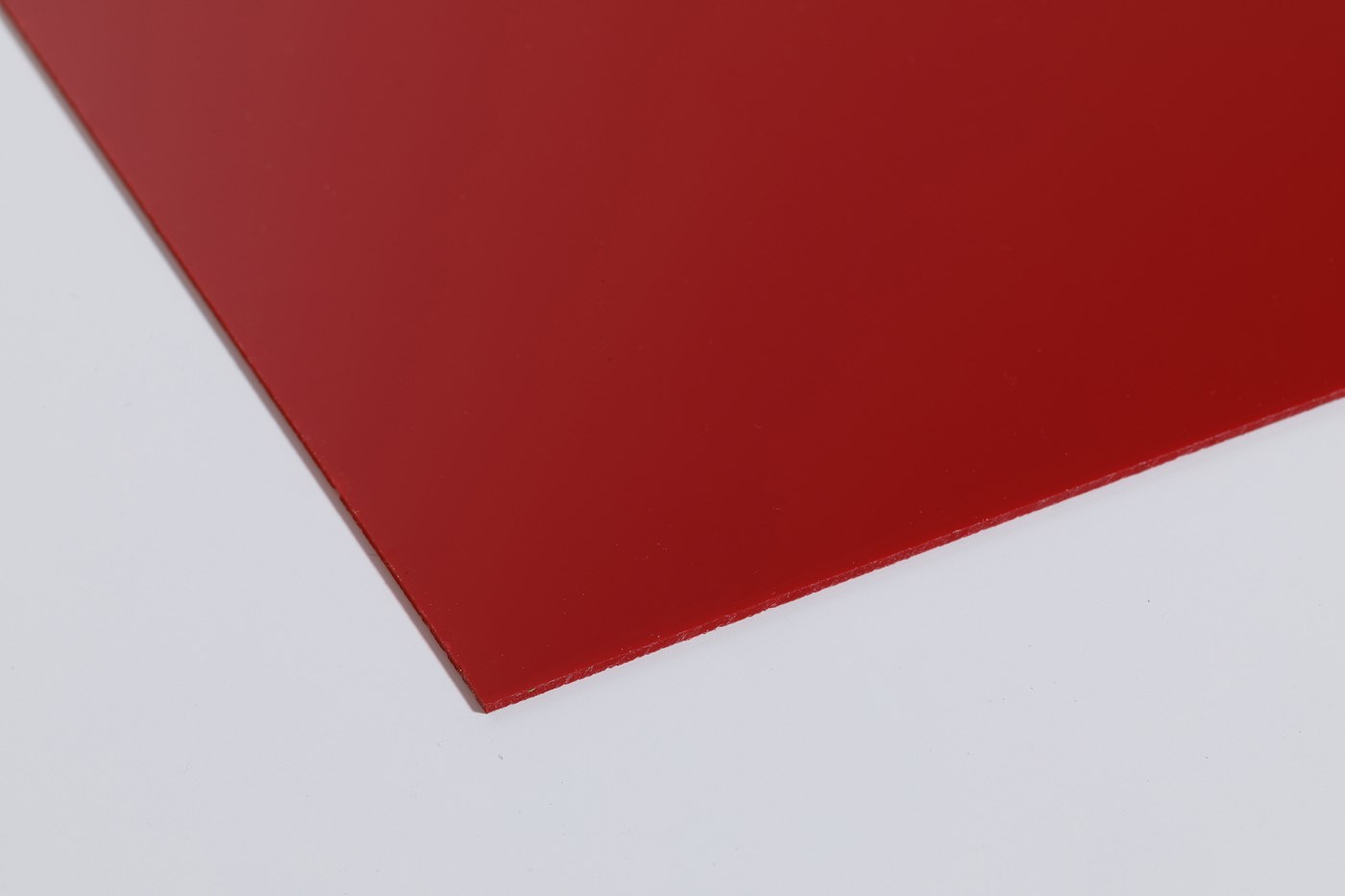

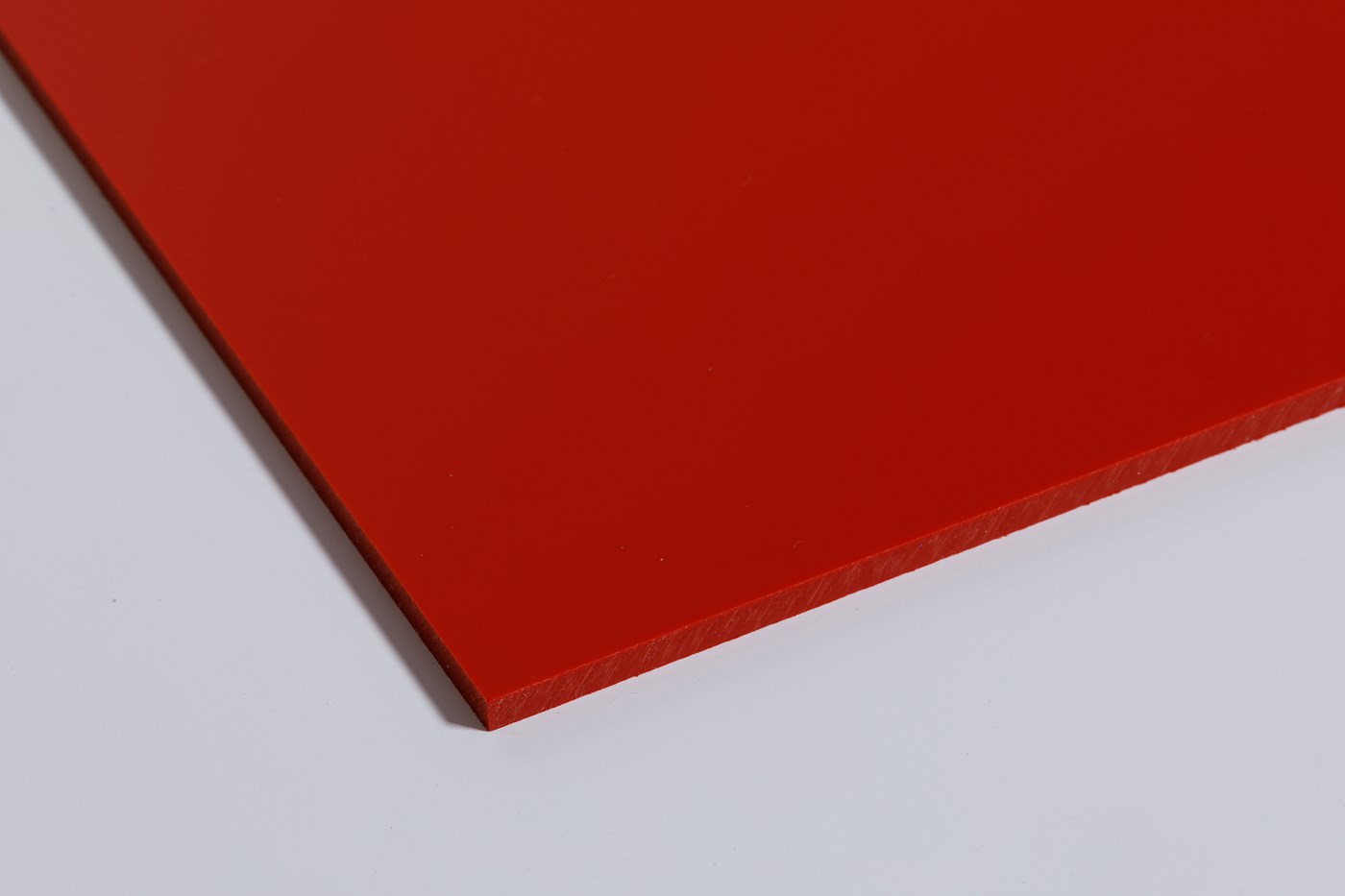

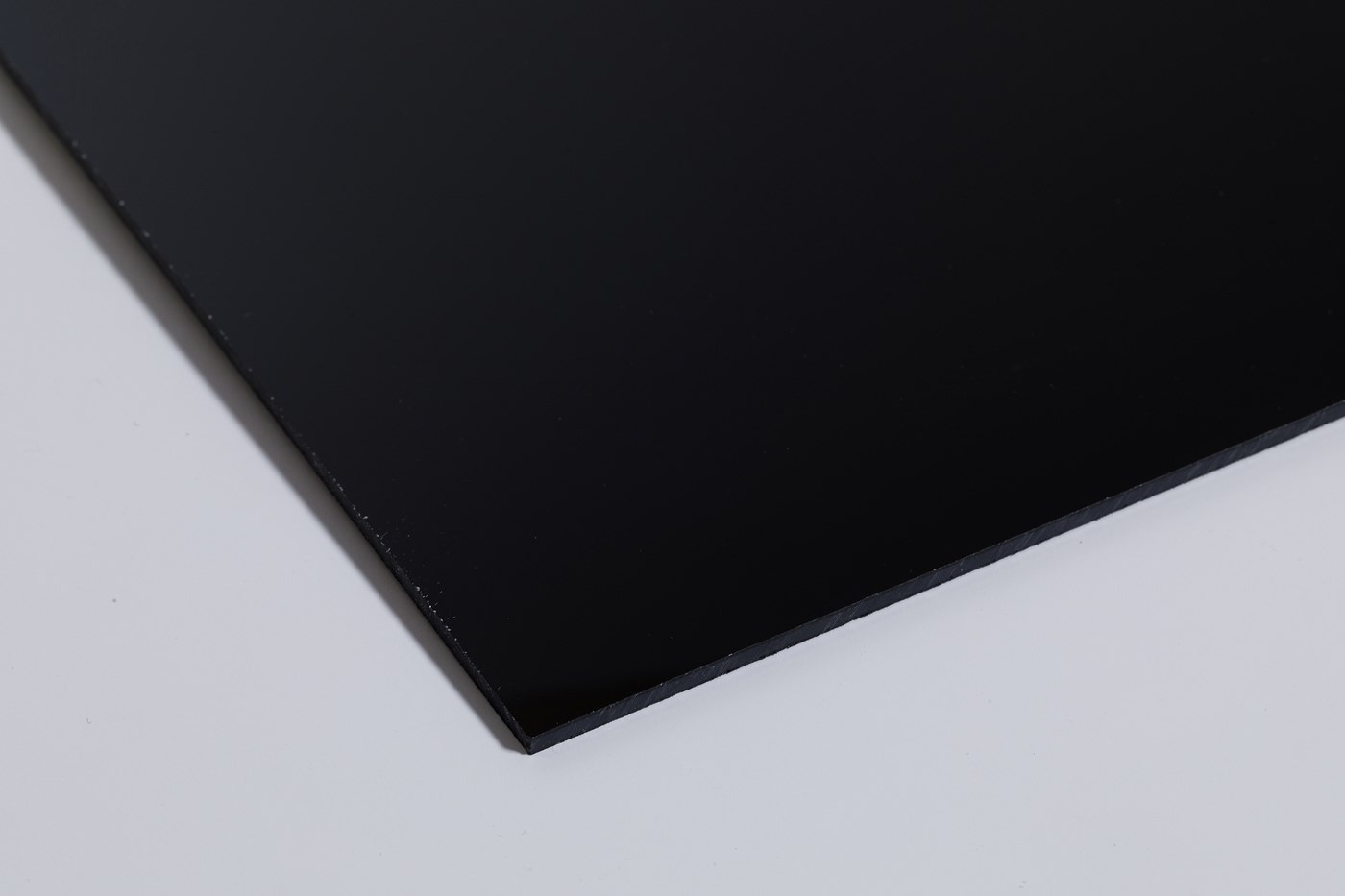

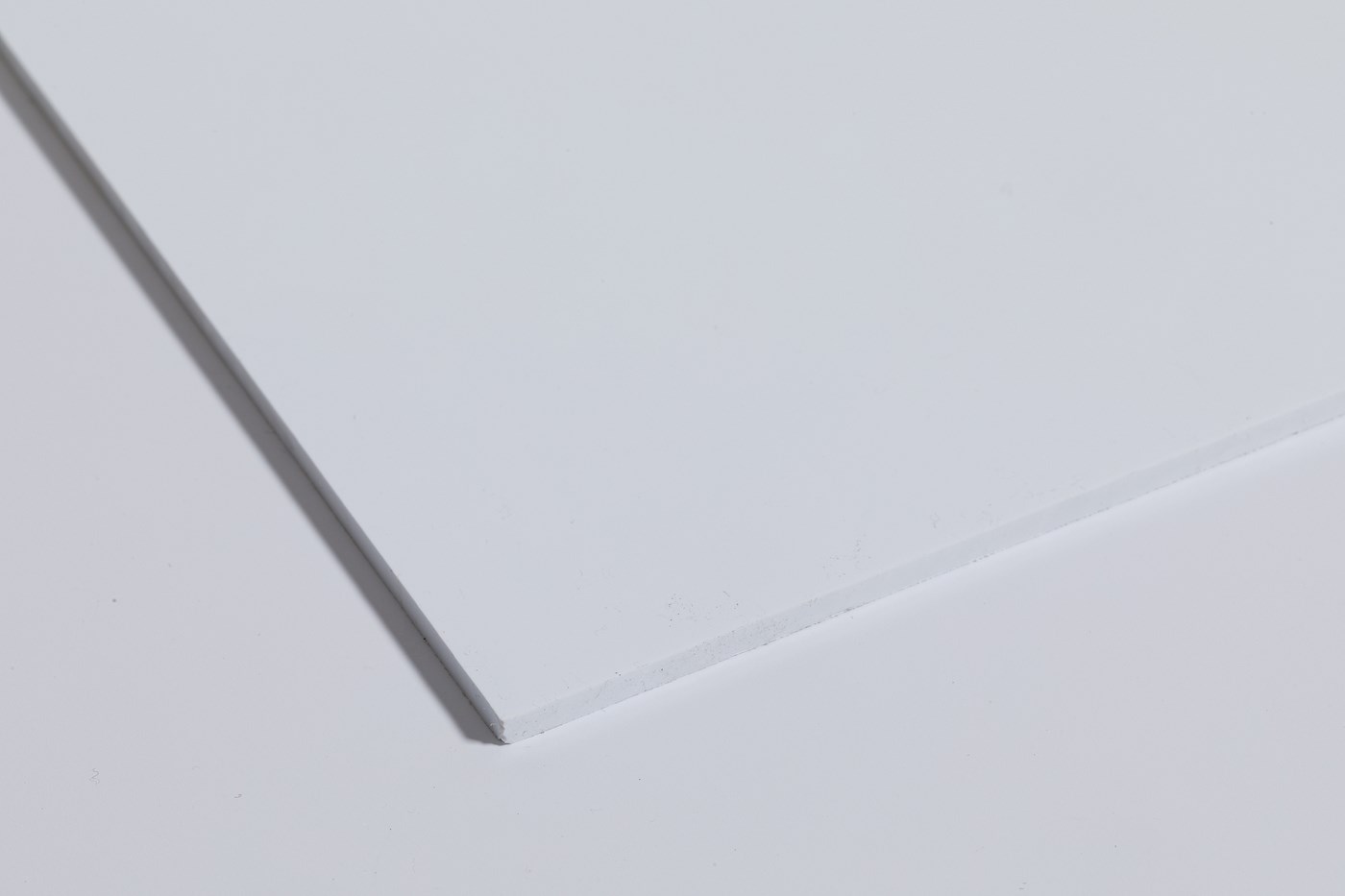

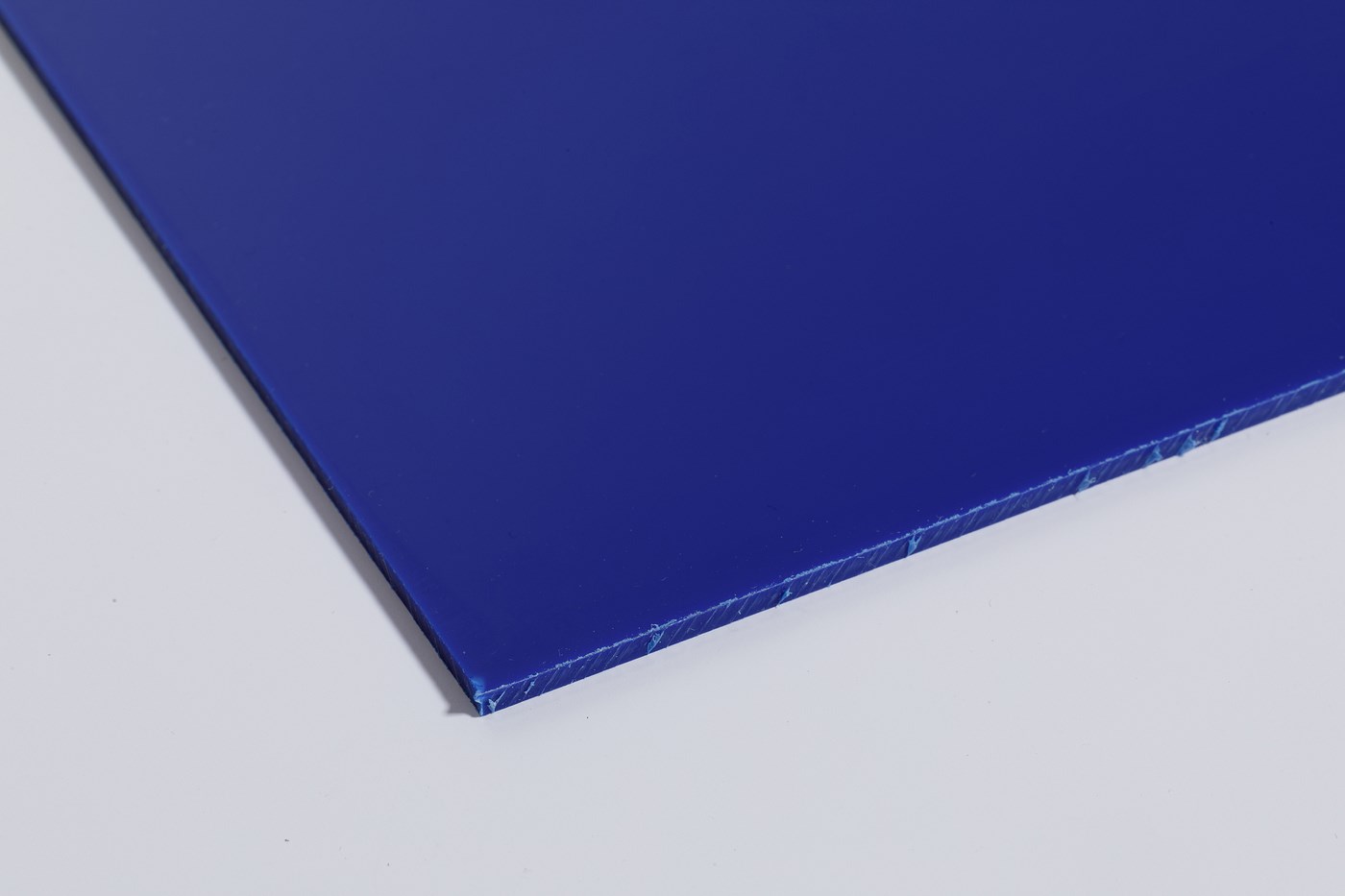

ABS/PMMA plastic sheet is a multilayer sheet. It is designed by coextrusion of ABS – plastic with PMMA (polymethyl methacrylate). A layer of ABS (acrylonitrile butadiene styrene) provides products with high impact resistance even at sub-zero temperatures. The top layer of impact-resistant PMMA (popularly “acrylic”) provides scratch resistance, protection against destruction under the influence of UV rays, excellent surface quality with a high gloss, resistance to acids, alkalis, fats, automotive fuels, antifreeze agents, detergents, stops bacteria to breed. ABS/PMMA plastic sheet is easily thermoformed which makes it possible to manufacture various products and baths with complex geometry and deep drawing from it.

ABS plastic and PMMA is painted well that makes it possible to produce sheets of a wide color range. The bottomside of the sheet is corona treated (activated) and has a high surface tension which contributes to better adhesion to resins and adhesives.

Another very important characteristic of ABS / PMMA sheet is its low weight in comparison with fiberglass as well as in comparison with European counterparts.

Application area

  • Finishing of bathrooms and saunas
  • Internal and external elements of refrigerators
  • Exterior parts for vehicles, agricultural machinery, special machinery
  • Fountains
  • Children’s and medical furniture
  • Facades for kitchen and living room furniture
  • Sanitary ware:
    • shower cabins
    • baths
    • fonts
    • shells
    • bathroom furniture

Processing methods

  • Milling
  • Gluing
  • All types of molding
  • Felling
  • Laser cutting, etc

Delivery form

  • Thickness from 1mm to 10mm
  • Width up to 2000mm
  • Smooth or embossed relief (“leather”, “sand”)
  • Glossy surface
  • Glossy surface protected by thermoformed PE foil

Chemical properties

Resistant:

  • To acids

  • To alkalis

  • To oil

  • To water

Not resistant:

  • To carboxylic acids

  • To complex esters

  • To own monomer

  • To ketone

  • To chlorinated hydrocarbons

  • To aromatic hydrocarbons

Operating temperature

  • Maximum temperature of long-term operation: 75-80 °С
  • Short-term heating up to 90-100 °С

Flammability indicators

  • Ignites under the influence of a flame or due to an appropriate heat amount
  • Burns with a bluish smoky flame. Smoke has a pungent fruity smell (ether)
  • Spontaneous combustion at 350 °С
  • Ignition from an external source at 450 °С

Characteristics of ABS-plastic with PMMA (polymethyl methacrylate)

UnitsTesting Method, ISOValue
Densityg/sm311831.075
Tensile yield strengthMPa527-2/1В/2035
Elongation at break%5273
Charpy impact strength on sample without notch (rib)23°СkJ/m2179/1ep15
Charpy impact strength on notched specimen (rib)23°СkJ/m2179/1ерА10
Charpy impact strength on notched specimen (rib)-30°СkJ/m2179/1ерА3
Flexural modulusMPa1782100
Bending temperature under load, not less1,8 MPa°С75-2Ае96

* The above values ​​refer to the state of the thermoplastics immediately after extrusion and do not take into account the effects of aging.
* The properties of the sheet may vary depending on the properties of the raw materials used

«Typical malfunctions during thermoforming and their elimination methods» you can download here

LEAVE AN APPLICATION ONLINE



    I agree to the processing of my personal data in accordance with the Privacy Policy

    You can also order plastic sheets
    by filling out the detailed online order form on our website.

    Additional Information

    Sheets of ABS, co-extruded with PMMA (the so-called “sanitary” plastic), are multi-layer sheets with a top layer of impact-resistant modified acrylic. The bottom layer of acrylonitrile-butadiene-styrene (ABS) provides sheets with high-quality molding and high impact resistance and resistance to low temperatures. The acrylic layer provides protection against UV rays, excellent surface quality with high gloss, chemical resistance. ABS / PMMA plastic sheet can be produced in various colors, depending on the customer’s requirement.

    ABS/PMMA plastic sheet is an indispensable material for finishing bathrooms, saunas, making elements of refrigerators, fountains, children’s and medical furniture, facades for kitchen and living room furniture, sanitary ware, like showers, bathtubs, fonts, sinks, bathroom furniture.

    Sheet ABS/PMMA plastic is easy to thermoform, that makes it possible to make baths with complex geometry and deep drawing from it. Light weight of products made of ABS/PMMA sheet plastic, significantly less than the weight of metal and cast iron products, facilitates their transportation and installation.

    ABS/PMMA plastic is used for thermoforming various sanitary ware, like bathtubs, sinks, shower cabinets, shower trays, fountains, sauna elements, furniture and bathroom furnishings. Also for the manufacture of parts for refrigerators, door cladding and external cladding in the automotive industry, in the production of outdoor advertising, commercial equipment.

    ABS/PMMA plastic sheet is a multilayer sheet. It is obtained by coextrusion of ABS – plastic with PMMA. A layer of ABS (acrylonitrile butadiene styrene) provides products with high impact resistance even at sub-zero temperatures. The top layer of impact-resistant PMMA (polymethyl methacrylate, popularly “acrylic”) provides scratch resistance, protection against destruction by UV rays, excellent surface quality with a high gloss, resistance to acids, alkalis, fats, automotive fuels, antifreezes, detergents , prevents the growth of bacteria.

    ABS plastic and PMMA can be painted well that makes it possible to produce sheets of a wide color range. The underside of the sheet is corona treated (activated) and has a high surface tension, which contributes to better adhesion to resins and adhesives.

    ABS/PMMA plastic sheet easily processed, milling, gluing, laser cutting, punching, thermal, frictional and ultrasonic welding, etc.).

    Another very important characteristic of ABS/PMMA sheet is its light weight.
